How Automated Ballooning Accelerates First Article Inspection

First article inspection is one of the most documentation-intensive processes in aerospace manufacturing. Before a single measurement gets entered into a First Article Inspection Report (FAIR), a quality engineer has to work through the engineering drawing, identifying every dimension, GD&T callout, and note, then manually numbering each one to correspond with a line item in AS9102 Form 3. That process is called drawing ballooning. For a complex aerospace part with 250 to 500 dimensions, it routinely takes 2 to 8 hours, all before measurement begins.

The bigger problem is what comes after. When ballooning happens in a standalone tool outside your quality system, the annotated drawing has to be manually reconciled with the FAIR. That reconciliation step is where data integrity risk lives: transcription errors, version mismatches, and a growing disconnect between drawing revision and inspection record.

Four ways disconnected ballooning holds teams back:

• 2-8 hours before a single measurement begins. Hours of annotation work that rarely get factored into FAI schedule estimates.
• Data entry errors at every transfer point. Manually re-keying characteristic data into Form 3 introduces transcription risk. A misread number or missed characteristic triggers a FAIR rejection.
• Characteristics falling out of sync. When the ballooned drawing and FAIR exist in separate tools, drawing revisions break the connection and often restart the ballooning work entirely.
• No single source of record. A standalone tool speeds up annotation but does not eliminate the export-import cycle.

The Hidden Costs of Manual Ballooning

The time cost is visible. The data integrity problem is often worse. A quality engineer finishes ballooning in one application, exports a PDF, then manually re-enters characteristic data (often through spreadsheets) into Form 3. Every transfer step is a transcription opportunity. A mismatch between the ballooned drawing and Form 3 is exactly the finding that triggers a FAIR rejection, requires a corrective action, and delays part approval.

When the OEM revises the drawing mid-FAI, the quality engineer must re-balloon and reconcile. Without an integrated system, that often means starting over.

The inefficiency is not in ballooning itself. It is in performing ballooning as a disconnected activity, separate from the FAI documentation that depends on it.

How Automated Ballooning Works

Net-Inspect's Auto-Balloon feature starts when the quality engineer uploads the engineering drawing (PDF format) directly into the FAIR. No separate tool, no export step. The drawing is part of the record from the start.

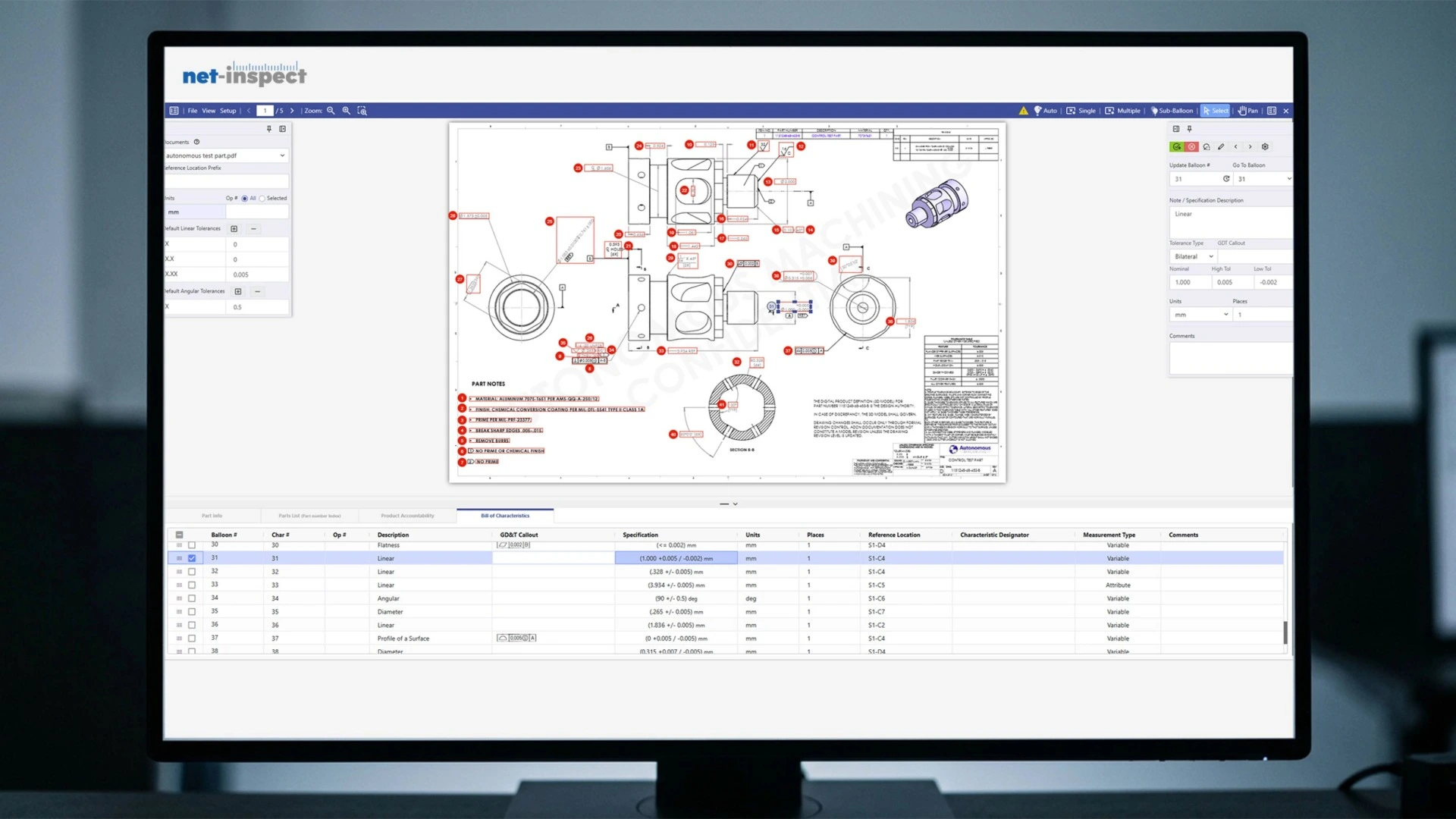

The system analyzes the drawing, identifying linear dimensions, GD&T feature control frames, tolerances, surface finish callouts, and notes, then assigns sequential balloon numbers and generates an annotated drawing. For complex drawings where a single callout spans multiple surfaces, balloons can be split into sub-balloons or standalone markers, ensuring accurate characteristic representation without compromise.

The quality engineer reviews the output, adjusts edge cases, and resolves any Validation Warnings, built-in flags for characteristics missing required specification data, before committing the balloon set to Form 3. Once confirmed, the system populates Form 3 automatically. The drawing, balloon annotations, and FAIR live in one record, always in sync.

Why Integration Is the Real Efficiency Gain

Standalone ballooning tools speed up annotation. What they do not eliminate is what comes next: the export, the manual re-entry into the FAIR, the version reconciliation when drawings change.

When ballooning is built into the FAI module, balloon data flows into the inspection report automatically. The numbers on the annotated drawing are the numbers in Form 3, generated by the same system, from the same source. When drawings are revised, balloon numbers stay synchronized across Form 3, purchase orders, and supplemental specs without manual reconciliation.

For supply chain workflows, the impact compounds. Customers reviewing a FAIR can see the ballooned drawing and Form 3 data in the same record, not a PDF attachment alongside a separate report. The digital thread from engineering drawing to approved FAIR is preserved end-to-end: fewer handoffs, fewer reconciliation steps, fewer points of failure.

Practical Impact on FAI Cycle Time

Consider a Tier 2 supplier managing FAI on a 300-characteristic part across multiple drawing sheets.

Without automated ballooning:

1. Open standalone tool; manually balloon 300+ characteristics (~3-5 hours)
2. Export annotated PDF
3. Manually re-enter characteristic data into Form 3 (~1-2 hours)
4. Attach PDF to FAIR; reconcile by hand before submitting

Total pre-measurement investment: four to eight hours. Drawing revisions restart the work.

With automated ballooning in Net-Inspect:

1. Upload drawing directly into the FAIR
2. Auto-Balloon generates annotations; engineer reviews, resolves Validation Warnings, confirms (~20-45 minutes)
3. Form 3 populates automatically
4. Submit with drawing and FAIR data in one synchronized record

Total pre-measurement investment: under an hour.

Downstream: FAIR rejections tied to ballooning discrepancies drop when annotation and documentation exist in the same system. Drawing revisions trigger a re-balloon workflow within the record rather than a manual restart. Audit queries about how characteristics were numbered have a clear, traceable answer.

What to Look for in Ballooning Software for Aerospace FAI

Not all drawing ballooning tools are built for aerospace FAI workflows. Five questions worth asking:

1. Does ballooning output integrate directly into your FAI documentation, or require manual transfer?

Standalone tools reduce annotation time without eliminating the data integrity risk that matters most. If Form 3 data has to be re-entered from the ballooning tool, you have solved one step of a still-disconnected process.

2. Does the tool align with AS9102 Rev D Form 3 requirements?

Balloon output structure, characteristic types, and form mapping should be built around current AS9102 requirements, not a generic inspection documentation standard.

3. Is human review and adjustment built into the workflow?

Complex GD&T and non-standard formats require judgment. The tool should present output for engineer review and confirmation before populating Form 3, not as a black box.

4. Can ballooning settings be standardized across your team?

Company-level balloon templates let teams define shared tolerance defaults, zone grid setups, and balloon properties, so every engineer applies a consistent configuration on every drawing.

5. Does the platform meet aerospace and defense security requirements?

For ITAR/EAR suppliers, engineering drawings are controlled assets. The platform should meet applicable export control and data security requirements. For defense-adjacent suppliers, that means government cloud hosting and documented compliance.

Conclusion

Manual drawing ballooning is one of the most time-consuming steps in the First Article Inspection process. Because it sits at the start of the workflow, delays there compound across the entire cycle.

Automated ballooning addresses the speed problem. But the suppliers seeing the biggest gains are those using tools built into their FAI system, not layered on top of it. The difference is the elimination of re-entry, reconciliation, and version mismatch risk that standalone tools cannot fully resolve.

If your team is spending hours per drawing on annotation, the right question is not just "can we automate this?" It is "does our ballooning workflow actually integrate with our FAI documentation, or just make one step of a disconnected process faster?"
