CMM SPC Integration: Turning CMM Measurements Into Live Process Control

Most shops already own the two pieces they need: coordinate measuring machines generating dimensional data, and statistical process control software waiting for it. The problem is what happens between them. That gap, filled with CSV exports, copy-paste, and shift-end spreadsheets, is where process visibility goes to die. And the cost grows with production speed: the faster you cut parts, the more product you make against a process you cannot actually see yet. This post covers why that manual interface is costly, what real CMM-SPC integration looks like, and what to evaluate when you close the gap for good.

Key Takeaways

• CMM-SPC integration is the automated transfer of CMM measurements into an SPC system for live control charts, capability indexes, and alerts, with no manual re-entry.
• When a CMM run finishes, the results file drops to a monitored directory, a Measurement Collection Service imports it, and SPC charts update in seconds. Out-of-tolerance results trigger Rejection Tags (eTags) that can escalate to Corrective Action Requests.
• Manual export to spreadsheets adds hours or days of delay, introduces transcription errors, and hides real process capability on tight-tolerance aerospace and medical parts.
• CMM data is ideal SPC input because it is objective, traceable, and feature-based, tied directly to drawings, FAIs, and AS9100 audits.
• A platform like Net-Inspect connects CMM measurements, hand-tool data, and shop-floor context in one SPC system that drives prevention instead of reactive inspection.

The Manual Gap Between CMM and SPC on the Shop Floor

Here is the scenario most of you recognize: inspectors export PC-DMIS results as CSV at end of shift, then re-key critical dimensions into Excel or a standalone SPC package. The inspection results sit idle until someone has time. By the time the chart updates, multiple lots or serial numbers are already at risk. And when the one person who knows the export-and-import routine is on vacation, the data often does not move at all that week.

Disconnected CMM and SPC systems create separate islands of quality data. CMM reports live as PDFs, control charts sit in desktop software, and FAIs exist in their own system. Specific failure modes follow: missed slow drifts in bore diameter, mixed data from multiple fixtures in one spreadsheet, and untraceable edits to data points before audits.

You already have SPC software and CMMs. The real problem is the brittle, human-intensive interface between them.

What CMM SPC Integration Actually Means

CMM-SPC integration is the automated transfer of CMM measurement data into an SPC system in a structured format that updates control charts, capability indexes, and alerts in real time without manual re-entry. It is not a weekly CSV import. It is a repeatable, unattended pipeline tied to every CMM run on critical characteristics.

The minimum data elements that flow include:

• Part number, serial number, or lot
• Operation or inspection step
• Feature ID tied to the ballooned characteristic
• Nominal, tolerance, and measured values
• Timestamp and device ID

Good integration preserves the digital thread from model and drawing to FAI to ongoing process capability for each feature and operation. That is the foundation for live SPC charts, capability studies, and closed-loop quality control on the floor.

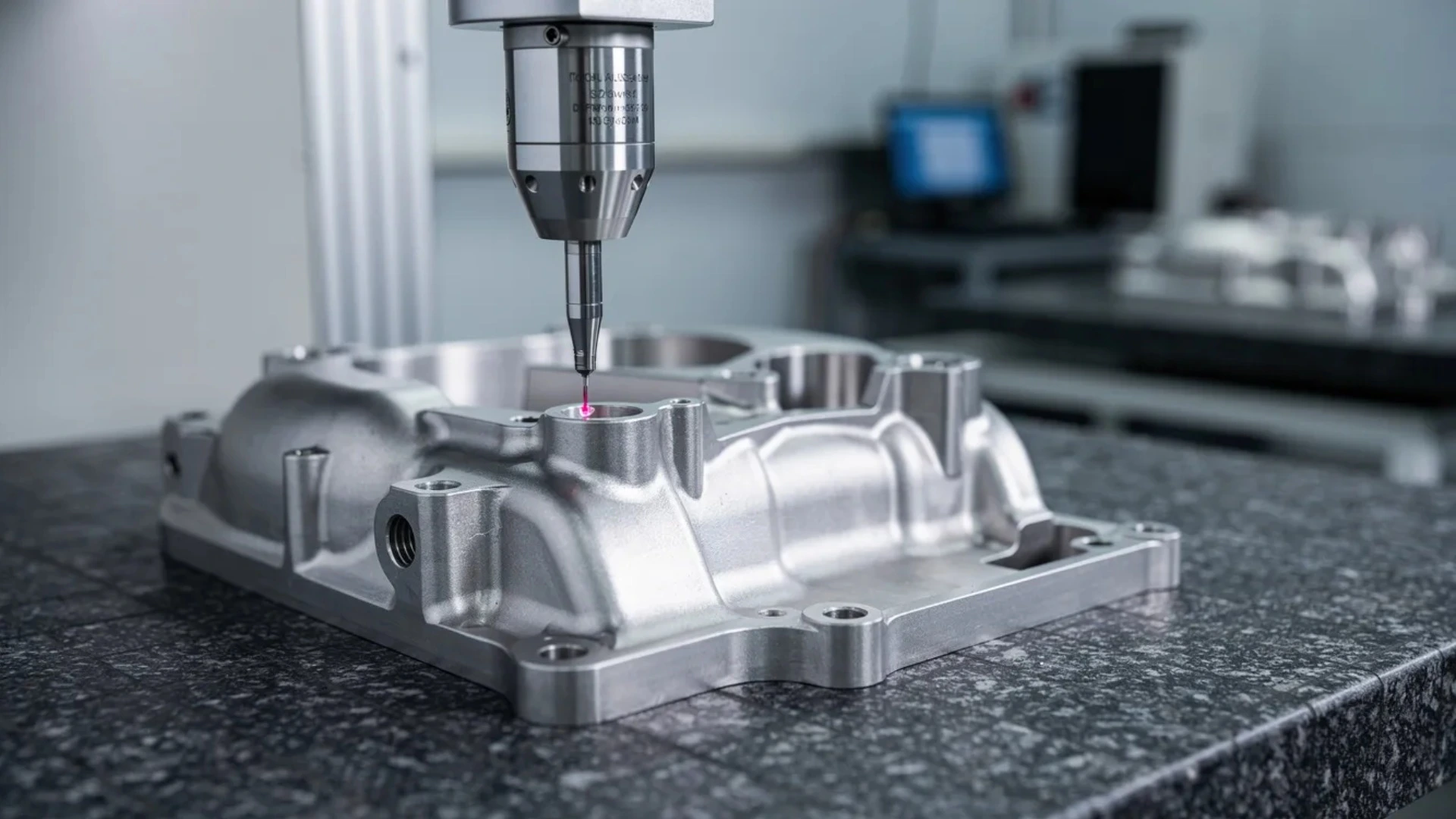

Why CMM Data Is Ideal Input for SPC

Coordinate measuring machines deliver precise spatial data on dimensional features within a few microns. That gives you objective, traceable quality data tied to GD&T and AS9102 characteristics, unlike ad hoc hand measurements buried in notebooks.

Consider a bored hole held to a few tenths. On the CMM, that diameter is measured the same way every cycle, against the same datum scheme, and recorded to the same resolution. Plotted across a production run, a slow upward creep in that diameter reads as unmistakable tool wear, visible long before a part actually fails the tolerance. That is exactly the signal that disappears the moment a value is rounded, retyped, or skipped.

CMM programs already encode feature IDs, nominals, and tolerances, and those values map cleanly to SPC variable definitions when integration is done correctly, with no extra setup per run. CMM data also captures real process behavior: tool wear, thermal growth, clamping variation, and fixture differences show up over time as shifts and trends. Recurring measurements on key features produce reliable Cp/Cpk and Pp/Ppk, giving auditors and customers confidence in the process, not just final inspection.

For multi-tier aerospace and defense supply chains, CMM-fed SPC creates a common quality language between OEMs and suppliers, one that holds up when you compare capability across machines, shifts, or supplier lots.

The Hidden Costs of Manual CMM Data Collection

Manual CMM-to-SPC collection looks cheap on paper but drives real cost in delay, error, and lost data on high-mix, low-volume work.

Delay. Quality engineers reviewing last week's Cpk discover a trend only after dozens of expensive parts are complete. By then the scrap is cut, and on a long-lead aerospace forging that single batch can dwarf the cost of the software that would have caught it.

Error. Sign errors on minus dimensions, swapped feature columns, missing units, and "massaged" outliers before charts are saved. Manual data entry routinely runs error rates of 0.5% to 4%, enough noise to undermine your SPC signals.

Attrition. Only a subset of CMM data ever reaches the SPC database, because re-keying everything is unrealistic. That hides real capability and masks intermittent issues.

Audit and customer impact. AS9100 Clause 8.5.1 and IATF 16949 Clause 9.1.1.1 expect controlled, traceable process monitoring. Hand-edited spreadsheets with no audit trail rarely survive a detailed evidence review.

How Native CMM SPC Integration Works, Step by Step

The data flow from CMM to live SPC follows a consistent path regardless of brand or format.

1. CMM execution. A program runs in PC-DMIS, ZEISS CALYPSO, Nikon CAMIO, Mitutoyo MCOSMOS, or FARO CAM2, measuring critical dimensions on each part or lot.
2. File generation. CMM software exports a standard results file on completion, including feature IDs, actual values, nominals, tolerances, and status.
3. Measurement Collection Service. Net-Inspect's service monitors designated folders (FTP-based transfer for formats including CALYPSO HDR/CHR, MCS, and Verisurf CSV) and imports new files without operator intervention.
4. Mapping and validation. The platform maps each result to the correct part, operation, and characteristic, validates formats and ranges, and flags values that fall outside expected limits instead of silently discarding them. Feature mapping absorbs program changes, so adding characteristics, modifying tolerances, or reordering features does not break the import.

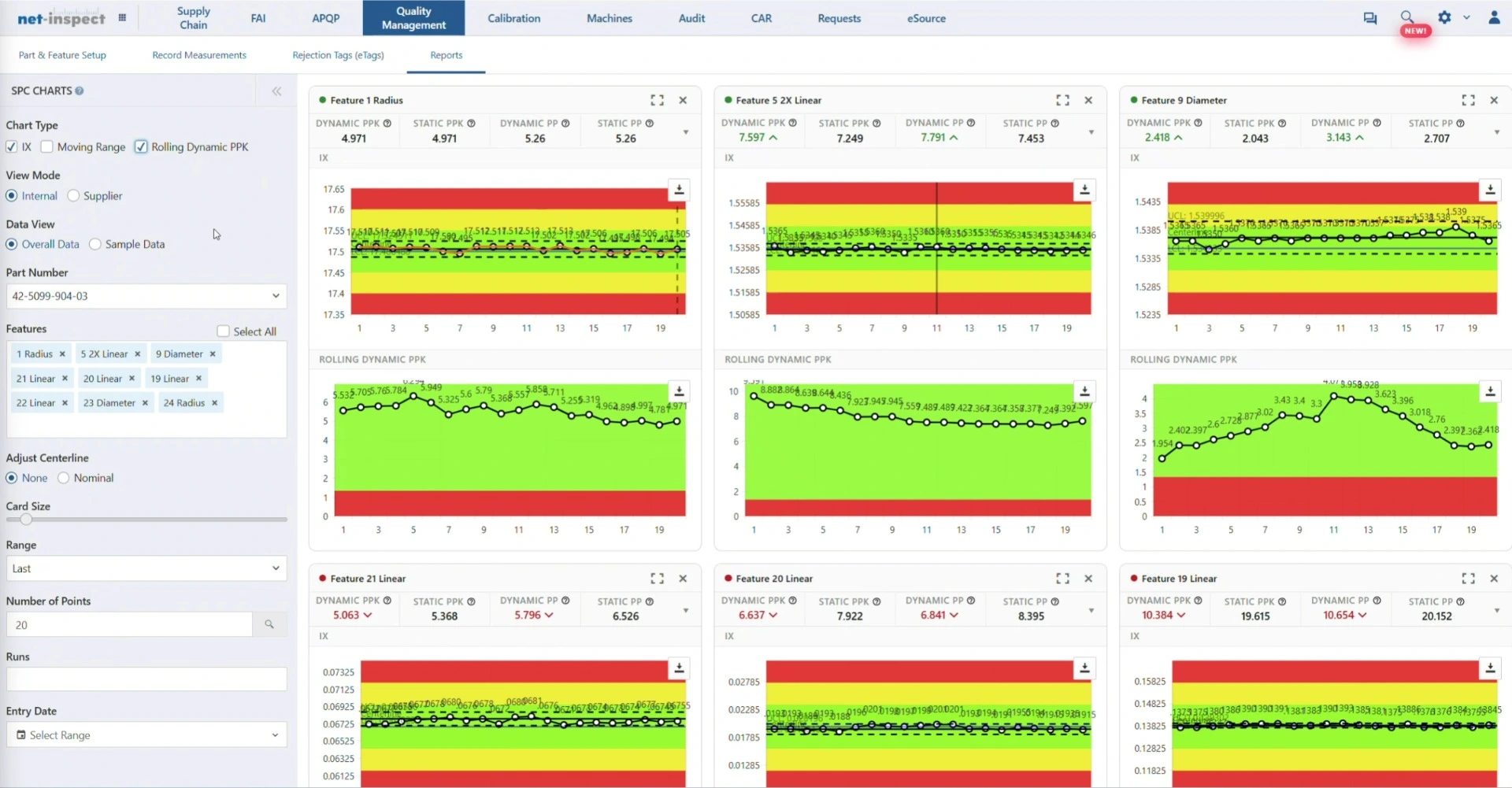

5. SPC updates. Beyond live control charts and out-of-tolerance alarms, the statistics recalculate in real time: Real Cpk (most recent 25 measurements), Static Cpk (first 25), and Rolling Dynamic Ppk per controlled feature update with each new measurement, so a capability shift is visible point by point rather than at the next review.

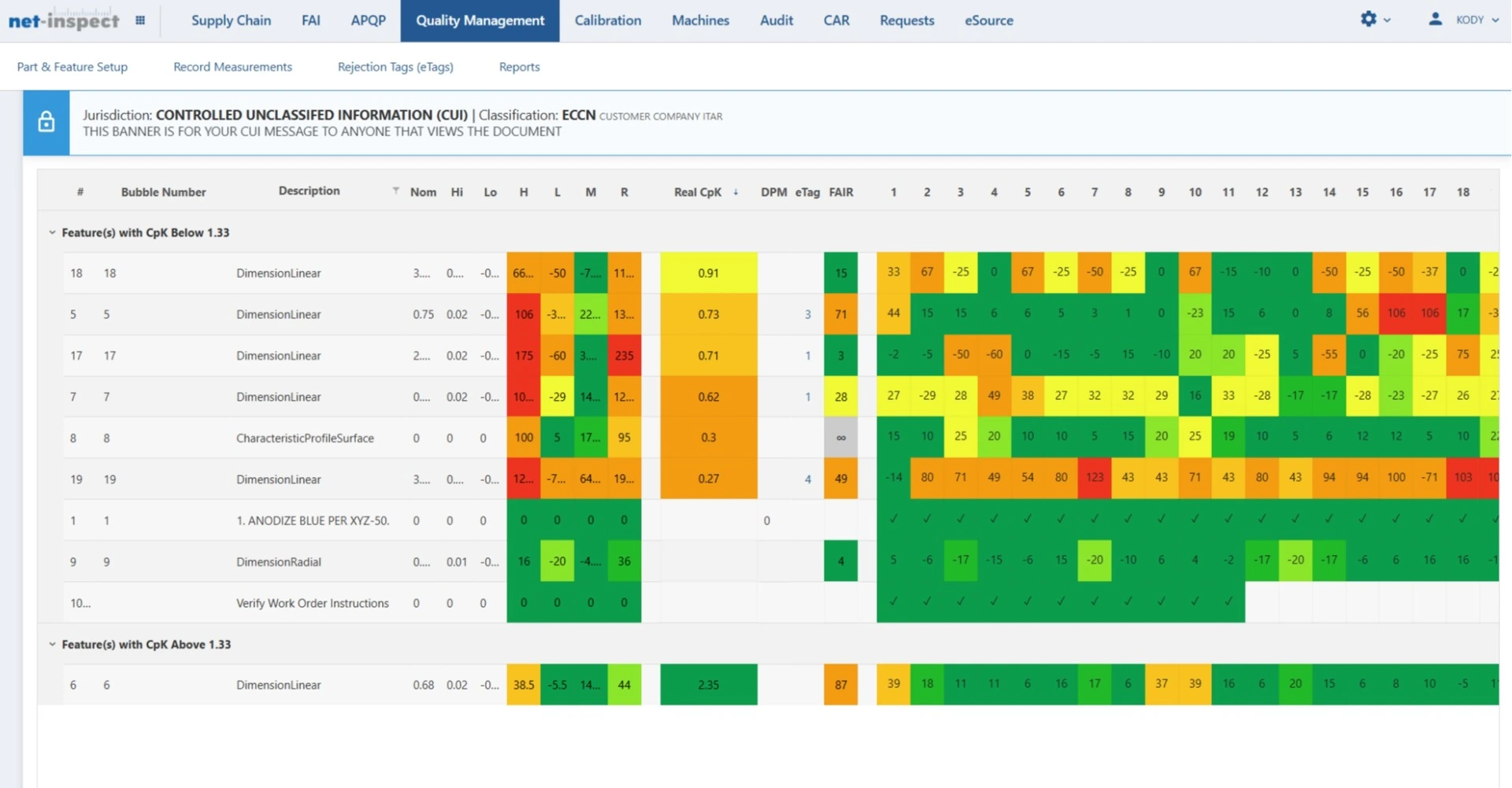

6. Shop-floor feedback. Color-coded Part Quality Zones update for the operator in a single view spanning tens or hundreds of characteristics across parts, and any out-of-tolerance result auto-generates a Rejection Tag (eTag) that can trigger a Corrective Action Request.
7. Enterprise visibility. Aggregated capability and quality data roll up to dashboards for quality managers and OEMs, with access controls by customer and supply-chain tier.

What to Look For in a CMM-Integrated SPC System

Use this as a buyer checklist. Each point ties to an operational outcome.

• Multi-CMM support. Native import from PC-DMIS, ZEISS CALYPSO, Nikon CAMIO, Mitutoyo MCOSMOS, and FARO CAM2, so mixed-brand metrology labs do not need separate workflows or custom parsers.
• Real-time SPC engine. Live control charts with SPC limits and rules, plus automatic Real Cpk, Static Cpk, and Rolling Dynamic Ppk as new measurements arrive, with meaningful interpretation for short-run aerospace work.
• SPC-adaptive sampling. Plans aligned to SAE AS13002 (major and minor) that adjust frequency based on rolling Cpk, escalating to 100% when capability drops, alongside AQL c=0 and statistical sampling levels.
• Unified quality data. A central, cloud-based repository holding CMM measurements, hand-tool data via MicroRidge interfaces, FAIs, NCRs, and CARs in one place for audits and investigations.
• User-focused alerts. Color-coded Part Quality Zones, clear SPC rule violations, and eTags that connect shop-floor events to formal Corrective Action Requests. These tools prevent defects rather than just document them.
• Standards alignment. SPC configuration and records mapped to AS9100 Clause 8.5.1 (production control) and IATF 16949 Clause 9.1.1.1 (monitoring and measurement of manufacturing processes).
• Security and compliance. FedRAMP Moderate Equivalency, independently assessed annually by Coalfire Systems, Inc. (a FedRAMP-accredited 3PAO), Azure Government hosting, and in-product ITAR/EAR controls.

How Net-Inspect Handles CMM Data, SPC, and Continuous Improvement

Net-Inspect is a cloud-based quality management platform that began as an internal QMS inside an aerospace contract manufacturer. It is now used by thousands of manufacturers across 59 countries, with millions of measurement results recorded.

The Measurement Collection Service imports CMM output files automatically from PC-DMIS, ZEISS CALYPSO, Nikon CAMIO, Mitutoyo MCOSMOS, and FARO CAM2. For hand tools and gages, MicroRidge MobileCollect (wireless) and GageWay (wired) interfaces connect more than 3,500 gages from 50+ brands, feeding those results into the same SPC system as the CMM.

Which tool fits depends on the part. CMMs are the right choice for low-volume, high-feature-count work; hand tools are the better fit for higher-volume parts with fewer critical features. Net-Inspect ingests data from either, so the decision stays about the part, not the software.

The inspection plan that drives production measurement can be generated from the characteristics captured during automated ballooning and the FAI Form 3, so the features documented at first article become the features monitored in production, with no second setup. At the point of measurement, operators see the visual work instructions configured for each feature, which keeps inspection technique consistent across shifts and improves the value of the data itself.

Real Cpk and Static Cpk on key features help engineers tell when a process is truly capable versus temporarily stable, especially after tool changes or adjustments, and the Cpk Difference Report flags features where the two have diverged. Rolling Dynamic Ppk charts and Part Quality Zones give operators and engineers daily tools to see drift, not just pass or fail, and to intervene before scrap accumulates.

The same capability data supports decisions well beyond the floor. Because Net-Inspect analyzes capability across its full measurement history, teams can compare performance by part, feature, machine, operator, process, or supplier, which turns make-versus-buy calls, work transfers between suppliers, and machine-tool investments into evidence-based decisions rather than judgment calls.

eTags from out-of-tolerance CMM results feed directly into NCR and CAR workflows, so issues are not lost in email or paper logs. Interconnected workflows between modules and among customers and suppliers create a digital thread from design to FAI to ongoing SPC across OEMs and tiers, with controlled visibility and no re-keying into separate customer portals.

Using Integrated SPC for AS9100 and IATF 16949 Compliance

Auditors increasingly expect process capability evidence and live control charts, not just final inspection records or FAIs frozen at day one.

Continuous CMM-fed SPC charts demonstrate ongoing production control aligned with AS9100 Clause 8.5.1, including documented action when control limits are breached. IATF 16949 Clause 9.1.1.1 expectations translate into Cpk/Ppk over time on critical dimensions, with traceability to machine, fixture, and lot.

Maintain historical Real Cpk and Static Cpk archives per part and feature, and capability studies for new contracts or design changes take hours, not weeks. When a customer or auditor asks for process control evidence on a specific part number, you retrieve it directly by part, date range, machine, or operator instead of reconstructing it from files and emails. The same CMM data set feeds FAIs, ongoing SPC, customer capability reports, and internal continuous improvement reviews without duplicated effort.

Over time, that turns CMM-fed SPC into a continuous-improvement engine. Capability differences by machine, shift, supplier lot, or fixture surface as patterns that feed APQP and PPAP activities, and manufacturers who move from spreadsheet-based SPC to integrated, continuous SPC commonly see scrap and rework reduced 20 to 50% in the first year.

Frequently Asked Questions

How much setup does it take to connect an existing CMM?

Connecting an existing CMM is a configuration step, not a development project. You point the Measurement Collection Service at the CMM's output location and map each feature to its characteristic once; after that, new result files import automatically with no per-run effort. Most teams start with one CMM and 5 to 10 customer-critical characteristics, then expand.

Do we need to change our existing CMM programs?

In most cases, existing PC-DMIS, CALYPSO, CAMIO, MCOSMOS, or CAM2 programs only need consistent feature naming and a standard export, not full rewrites. A brief metrology review to align feature IDs with drawing balloon numbers and confirm every controlled characteristic is exported is worth the effort up front.

What is the difference between Real Cpk and Static Cpk?

Static Cpk is calculated from the first 25 measurements on a characteristic and sets a baseline, often from PPAP or first production. Real Cpk is calculated from the most recent 25 and reflects current performance. Comparing the two shows whether capability is improving, holding, or degrading, and the Cpk Difference Report flags features where they have diverged enough to investigate.

Can hand-tool and portable metrology data go into the same SPC charts as CMM data?

Yes. Net-Inspect ingests hand-tool and gage data via MicroRidge MobileCollect and GageWay interfaces, so calipers, micrometers, and indicators feed the same SPC software as the CMM. Keep CMM and hand-tool data in separate variables when method or uncertainty differences could distort capability, while reporting both in one dashboard.

Is CMM SPC integration useful for short lots and one-off parts?

Real Cpk and Static Cpk on rolling 25-measurement windows, plus Rolling Dynamic Ppk charts, give meaningful insight even on short-run aerospace work. Use it mainly to compare capability by machine, program, or supplier and to catch gross shifts early, rather than chasing long-run textbook statistics.

How does Net-Inspect handle security and export control for CMM and SPC data?

Net-Inspect is hosted on Azure Government and maintains FedRAMP Moderate Equivalency, independently assessed annually by Coalfire Systems, Inc., a FedRAMP-accredited 3PAO, with in-product ITAR/EAR controls. This posture supports customers' DFARS 252.204-7012 and CMMC 2.0 requirements. Net-Inspect supports compliance as a cloud provider; it is not itself CMMC-certified.

Where to Go Next

Pick one or two high-impact parts and map how long it currently takes to turn CMM measurements into actionable SPC insight. That gap is your starting point.

If you want to see what live CMM-to-SPC integration looks like on your parts, explore Net-Inspect's SPC capabilities or request a demo focused on CMM data collection and real-time SPC. Involve both metrology and quality engineering in that conversation so CMM program structure, data collection, and capability expectations align from day one.
